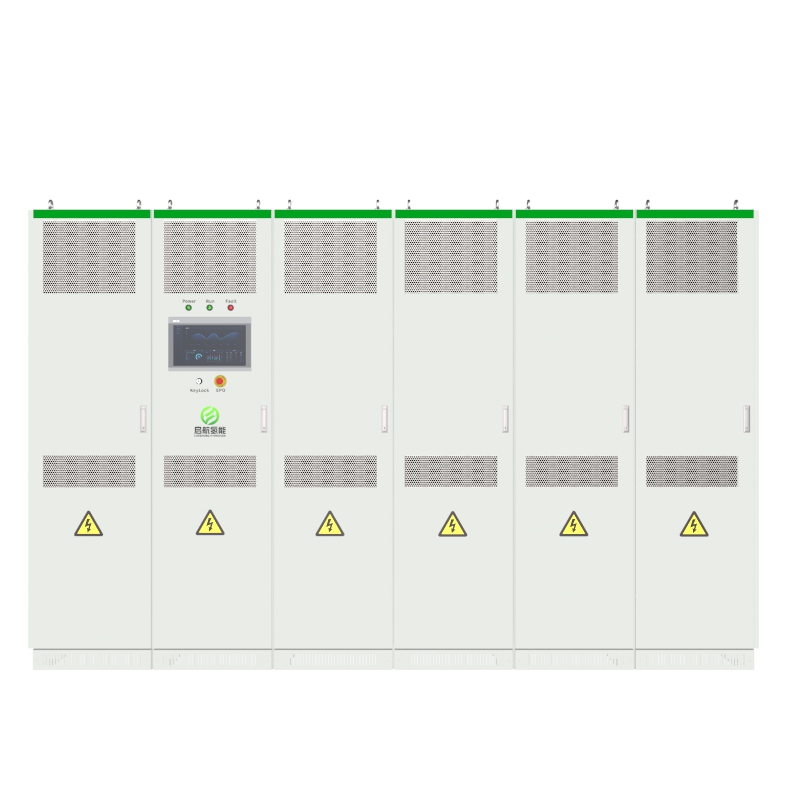

1000 SCM Air-Cooled Hydrogen Production Power Supply

Advanced and efficient Three Level Inverter，Maximum efficiency ≥ 97.5%. High voltage-Low current / Low voltage-High current available Green and friendly DC Harmonic ≤ 3%，power factor ≥ 0.99. DC voltage ripple ≤ 1% Safe and reliable Hydrogen process interlock for easy integration of auxiliary control systems Adapt to complex environments such as high altitude, high temperature, high humidity, wet, high salt, foggy, extreme cold, etc. Versatile and smart Unique P/I curve setting function Full-power regulation response time ≤ 100ms

Ultra-Compact & High Efficiency Air-Cooled Innovation: Advanced IGBT devices and optimized modulation technology deliver 1.2kW/L power density, reducing size by 40% and saving 50% installation space. Efficient Thermal Management: Patented air-cooled heat dissipation system supports 24/7 continuous operation, maintaining ≥96% conversion efficiency even at 45°C ambient temperature. Modular Architecture, Flexible Adaptation Customizable Power: Covers 50kW–2.5MW (expandable to 5MW via parallel operation), ideal for R&D labs, distributed hydrogen stations, and mid-sized green hydrogen projects. Smart Power Adjustment: 10%–100% continuously adjustable output with ±0.5% precision, perfectly matching dynamic demands of ALK/PEM electrolyzers. Multi-Layer Protection, Safety Assured Independent Safety System: Integrated over-voltage, over-current, over-temperature, and short-circuit protection with ≤10ms fault response, ensuring ≥99.9% system availability.   Full-Condition Monitoring: Real-time tracking of 20+ parameters (IGBT temperature, fan speed, output harmonics, etc.), with auto-alerts and diagnostic reports for anomalies.

Designed for Small-to-Medium Hydrogen ScenariosThe HRP1000A air-cooled IGBT hydrogen power supply features a modular architecture with a power range of  100kW–5MW, suitable for distributed hydrogen stations, industrial park green hydrogen supply, and R&D pilot projects, offering versatile adaptability.
