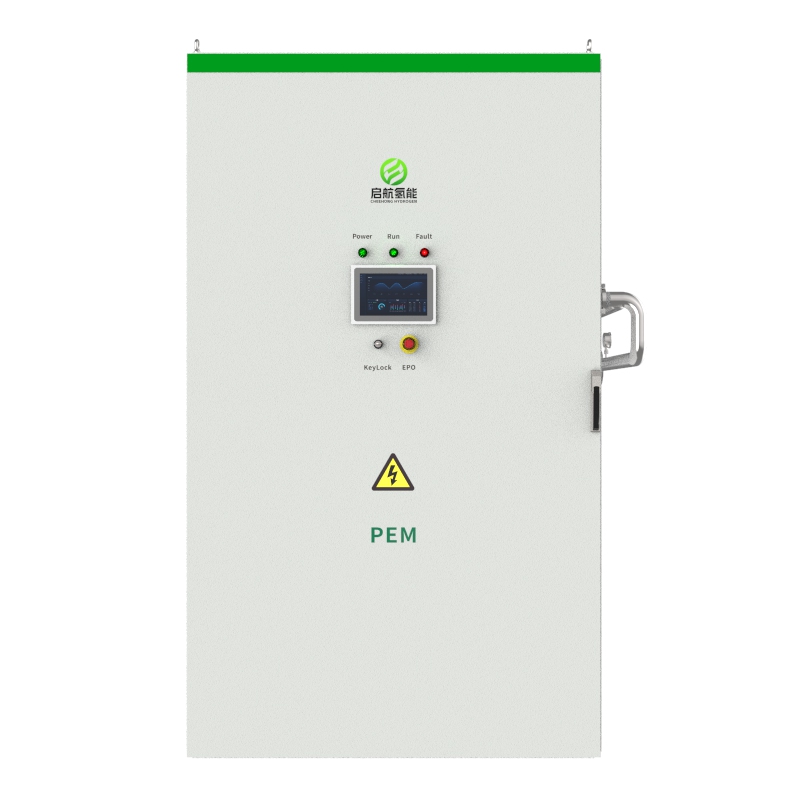

CheeHong Hydrogen’s Medium Capacity Electrolyser Power Supply for PEM series is specifically engineered for Proton Exchange Membrane (PEM) electrolysers, catering to mid-scale hydrogen production scenarios with an output range of 200–500 Nm³/h. By integrating three core models—HRP0200P, HRP0300P, and HRP0500P—this series leverages modular design and intelligent liquid cooling technology to perfectly align with the low-voltage, high-current demands of PEM electrolysis, enabling efficient, safe, and stable green hydrogen production.
Product model :
Medium Capacity Electrolyser power supply for PEMProduct parameters :
HRP0X00PLow Voltage & High Current Output: Delivers 5,000–8,000A current with a voltage range of 200–800Vdc, fully optimized for PEM electrolysers’ low-voltage, high-current-density operation.
Ultra-Low Ripple Control: ≤1% current ripple minimizes polarization losses, enhancing electrolyser efficiency and longevity.
3-Level IGBT + Interleaved BUCK Topology: Achieves ≥97% peak efficiency, significantly reducing energy costs.
Grid-Side Power Factor: ≥0.99 with ≤3% current harmonic distortion, meeting stringent grid integration standards.
100ms Rapid Response: Adjusts power/current curves in real-time, seamlessly syncing with renewable energy fluctuations for off-grid/microgrid applications.
Smart Liquid Cooling System: IP54-rated protection ensures stable operation in extreme environments (-35°C to +60°C), extending lifespan by 30%.
Multi-Mode Control: Supports constant current, voltage, or power modes for complex PEM operational requirements.
Process Interlocks: Deep integration with Balance of Plant (BOP) systems for real-time electrolyser monitoring and safety assurance.
Fault Recording & Diagnostics: Millisecond-level anomaly detection and root-cause analysis improve maintenance efficiency by 50%.
⇒ Product Parameter
|
product |
HRP0200P |
HRP0300P |
HRP0500P |
|
|
Hydrogen yield (m³/h) |
200 |
300 |
500 |
|
|
AC input parameters |
AC voltage range |
400~600V ac |
||
|
Permissible grid voltage range |
±10% |
|||
|
Rated grid frequency |
50/60Hz |
|||
|
Permissible grid frequency range |
±10% |
|||
|
Power Factor |
≥0.99 |
|||
|
Power factor range |
0.9 leading～0.9 lagging |
|||
|
Current harmonic distortion |
≤3% |
|||
|
Access method |
3P3L + PE |
|||
|
DC output parameters |
Output Power |
1000kW |
1500kW |
2500kW |
|
Maximum Power |
110% maximum output |
|||
|
Maximum DC current (A) |
6000 |
6000 |
8000 |
|
|
Maximum DC voltage (V) |
600 |
600 |
800 |
|
|
Current range |
0~Maximum output current |
|||
|
Voltage range |
0~Maximum output voltage |
|||
|
Current ripple |
≤1%-Ipp |
|||
|
Current accuracy |
≤0.5%×maximum current |
|||
|
Dynamic response |
≤100ms, slope can be set |
|||
|
Control method |
Constant current control |
|||
|
General |
Highest efficiency |
97.50% |
97% |
|
|
Dimensions (W×D×H mm) |
2720×1865×2305 |
|||
|
Protection level |
IP54 |
|||
|
Temperature range |
-35~60℃ |
|||
|
Humidity range |
0~95% No condensation |
|||
|
Fault recording and broadcasting diagnosis |
Including |
|||
|
Process interlocking |
Including |
|||
|
Communication interface |
RS485, Modbus RTU, Modbus TCP |
|||
|
Human-computer interaction interface |
10-inch touch screen interaction |
|||
|
Inport and outport |
Up in /Down out |
|||
Advanced and efficient Designed for PEM type electrolysers, better adapted to high current densities. External step-down transformer for frequency isolation and higher efficiency. Green and friendly DC Harmonic ≤ 3%，power factor ≥ 0.99. DC voltage ripple ≤ 1% Extreme Reliability Intelligent liquid cooling will effectively improve the life of devices and the whole equipment IP54 protection for better adaptation to complex environments Versatile and smart Unique P/I curve setting function Full-power regulation response time ≤ 100ms
Details
CheeHong Hydrogen’s Medium Capacity Electrolyser Power Supply for PEM series is specifically engineered for Proton Exchange Membrane (PEM) electrolysers, catering to mid-scale hydrogen production scenarios with an output range of 200–500 Nm³/h. By integrating three core models—HRP0200P, HRP0300P, and HRP0500P—this series leverages modular design and intelligent liquid cooling technology to perfectly align with the low-voltage, high-current demands of PEM electrolysis, enabling efficient, safe, and stable green hydrogen production.
